D.P.A.
e-Certa, Inc. Internal Visual Verification Analysis
| Client | Test Report, Inc. |
| DPA# | 1002EC |
| Part Identification | SA7025DK-T |
| Manufacturer | Philips |
| P.O. # | |
| Date Code | 9432 |
| Quantity | 1 |
| Package Type | |
Lot Disposition
| Submitted By: ____________________ |
| ___ Meets Requirements |
| Reviewed By: ____________________ |
| ___ Does Not Meet Requirements |
| Approved By: ____________________ |
| ___ Customer Review |
Laboratory Summary
Analysis Procedure/Results:
Manufacturer: Philips | Part Number: SA7025DK | D.P.A. Number: 1002EC | Customer: Test Report., Inc. |
Part Type: Chip | Date Code: 9432 | Quantity: 1 | |
Inspection Performed per: Mil-Std 883 Method 2013 Discrepancies : ___Yes _X_No
| Sample #: |  |  |  |  |  |  |  |  |  |  |  |
| Anomaly: | | | | | | | | | | | |
| Anomaly: | | | | | | | | | | | |
| Anomaly: | | | | | | | | | | | |
| Anomaly: | | | | | | | | | | | |
30x-60x Magnification
a. improper substrate or bonding post plating material
b. improper bond wire material or size
c. metallic contamination or foreign material
d. lifted or broken wires
e. lifted, cracked or broken die/substrate
f. improper die mounting
g. excessive lead wire loop or sag
h. improper bond technique and size
i. improper assembly die location and orientation as compared to the applicable assembly drawing
j. particles other than those introduce during opening
75x-150x Magnification
k. metalization voids, corrosion, peeling, lifting, blistering or scratches
l. bond inter-metallics extending radially more than 0.1 mil beyond the bond periphery in any direction
m. improper die or substrate metalization design layout, topography or identification
n. die cracks
o. logo does not match
p. die numbers do not match

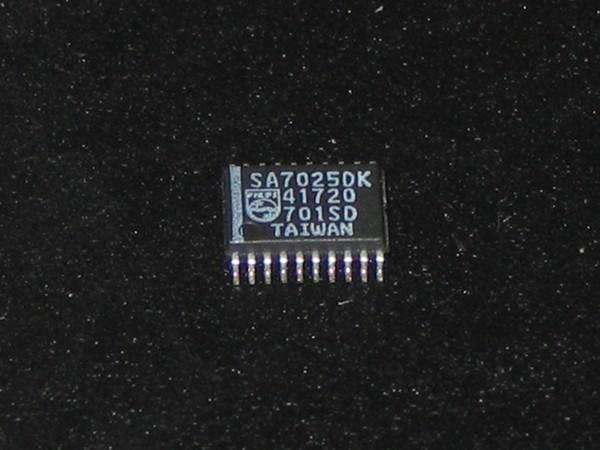

| Figure: 1 Sample: 1 Magnification: 10x Subject: outside face view |
| Figure: 2 Sample: 1 Magnification: 10x Subject: outside back view |
| Figure: 3 Sample: 1 Magnification: 48x Subject: inside of de-lidded chip |
| Figure: 4 Sample: 1 Magnification: 300x Subject: part number |
| Figure: 4 Sample: 1 Magnification: 300x Subject: logo |
|
